Steinberg CARD 32

• Boots up with Pro-16 sequencer software by Steinberg
• ¿EditE - DX7 patch editor?
• ¿TNS - Musical note setting program?
• Printed on circuit board:

©1988

WALDORF ELECTRONICS

CARD32 382 000 0001

COMPONENT SIDE

• Circuit board contains:
  • Three 27128 ROMs labeled: EditE, TNS, Pro 16
  • EF 6850 Asynchronous Communications Interface Adapter (ACIA) IC
  • EF 6840 MOS PROGRAMMBLE TIMER(N-CHANNEL)
  • PAL 16R68 20-PIN TTL PROGRAMMABLE ARRAY LOGIC
  • 2× 74LS04 Hex Unbuffered Inverter, 74LS74 Dual Positive-Edge-Triggered D Flip-Flops with Preset, Clear and Complementary Outputs
  • Optocoupler PC900 for MIDI IN
  • LM311, perhaps for Tape I/O (tbe)

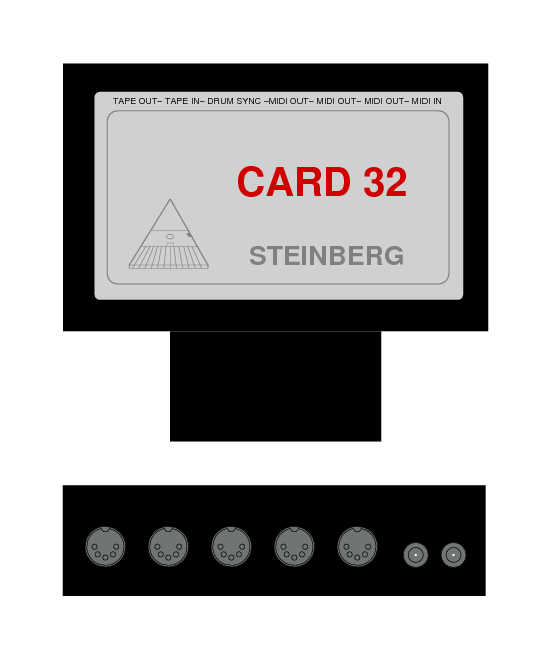

• I/O
  • Tape In/Out for tape machine synchronisation
  • Roland DRUM SYNC
  • Three MIDI OUT
  • One MIDI IN
• Missing information:
  • access to software on the other two ROMs
  • user manual
